Looks normal for idle. Which one is #1? Try again just after the engine dies, maybe 1 is wet. Clean the plugs ( say 1&2) a little and see if they both got black the same.
Test shows engine itself is in good shape, Graham - no engine worriesā¦
The first picture shows more soot than the second; which cylinder is which - and are all the other like the first or the second?
Bear in mind that the engine has not been driven āproperlyā, and with lots of idling I would expect the others to be more like the first picture - which is ānormalā for cold, fat running; the second picture seems too lean/clean.
However, the heading says āextremely rough running and cutting outā, as was described i your original posts - has anything changed?
Again; disconnecting one plug at a time is unreliable for detecting a failing cylinder. A crude injector test; * disconnect CSI and coil positive - and crank for some seconds*. With functioning injectors; the plugs should all be wetā¦
However, whether this is easier than the more precise check by removing, and testing, injectors is your choice. But referring to the above reservation; all injectors should be checkedā¦
At this stage I would say that the first picture shows a working cylinder - the second picture shows misfiring. Either not igniting, igniting at the wrong time - or is not getting fuelā¦
Frank
xj6 85 Sov Europe (UK/NZ)
Iāve cleaned all the plugs, Iāll see how they look after the engine runs again

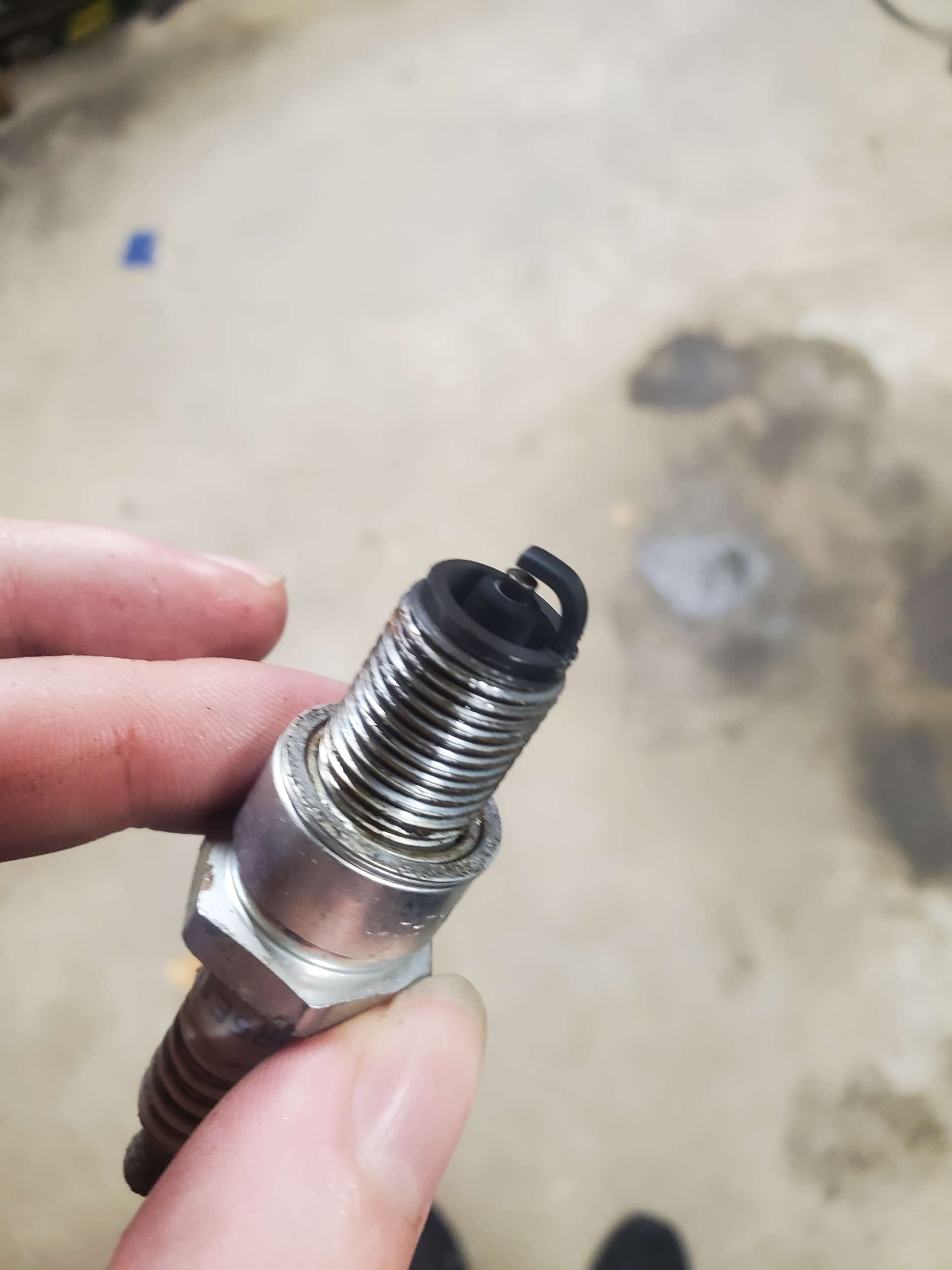

Plug 1
Plug 2
Plug 3
Plug 4
Plug 5
Plug 6
Thank you
Good to know, so far the engine is still cutting out and not running on all cylinders, but Iāll perform the injector test instead of my plug method
Thank you again
Somewhere you indicated there is a small leak in the exhaust header, and before your O2 sensor. Got to think that is going to allow O2 into the exhaust. That excess O2 will be read by the sensor, and signal the ECU that the engine is lean (excess/unburnt O2 in the exhaust stream), the ECU will correct to richen the fueling, causing the engine to eventually cough and die fron now the excess fuel. Fix the hole. Temporarily, use muffler tape or muffler putty. Then see what happens.
SD Faircloth www.jaguarfuelinjectorservice.com
2 Likes
Clearly plug one is the only one that isnāt shiny. Whatever you do you need to focus on this cylinder.
Put the plug onto the cylinder head and see if it sparks when you crank. I think it does, after all it is combusting. That leaves you with the injector which is probably faulty.
Also the above but I donāt think thatās the issue - doesnāt the Lambda sensor take ages to warm up? As far as too rich goes these plugs look normal.
To my eyes, the plugs are sooty. Got to remember, the plugs/engine is only being run for very short periods during Grahamās testingā¦as far as we know. Heās posting almost daily so canāt be running the engine for very long. SD
Andā¦forgot to includeā¦If the plugs are sooty, so is the O2 sensor, which, if sooted or carboned up, will also cause the ECU to richen the fuel mix. So, you get a double wammy. Hole in the exhaust header and sooty O2 sensor. SD Faircloth
Of course, but not too sooty given the circumstances! Mine always looked like that in the same situation.
My question to you is, the o2 sensor doesnāt do anything initially but the engine runs rough from the start, doesnāt that rule it out?
Okā¦ You made me read the entire novelā¦again. Seems like this cutting out started after taking apart and refitting the air intake system. Described in the 8/12/2023 posting. This engine has a mass airflow meter or sensor. Correct ? Might go back and re-examine its operation. SD Faircloth
Thereās a pretty big leak not in the exhaust header but where it connects to the stock exhaust system, well past where the catalytic converter was and oxygen sensor is
The fuel injector site is another good resource, thank you
Iāll double check to confirm the plug itself sparks, but I agree with you on the injector at fault somehow
Thank you
Youāre right, the engine is being run on average 20-40 seconds throughout my testing, save for a few times a few days ago where I let it run for maybe 5-7ish minutes
I hadnāt considered that, if I have time after some more injector/plug 1 tests Iāll take a look how dirty it is
Thanks
Correct, the engine has a mass airflow meter, but I honestly have no idea how to check that its working properly
Iāve found posts explaining repairs, but Iām unsure how to check all is well with it. Either way, itāll happen after I investigate all I can with Cylinder/Injector/Plug #1
Thanks
I know Iām repeating myself all the time but fix the cylinder first before you go off on unlikely tangents
Taking apart and refitting the intake system is clearly the area that got disturbed and that includes the wiring and injectors and also the air flow meter (AFM) but this would affect all six cylinders.
Butā¦
Two weeks ago I removed my tach and the same time the oil pressure warning light right next to it failed.
Checked the area ten times. It was the sensor at the engine - totally unrelated
Hi, I havenāt neem a Jaguar owner for 10 years now after discovering M-B S Class cars. Just got an email re AFM and these postings.
Easily found my post of 15 years ago which may help.
AFM Repair
HTH Brian
PS I miss my XJS convertible but I donāt miss being exposed to the Australian sun when the roof was down.
With any sort of fuelling/mixture problem; the O2 sensor must be disconnected, Grahamā¦
Any attempts of adjustments will otherwise be countered by the Lambda system - leading to confusion. The engine, properly set up will run perfectly without the Lambda systemā¦
I doubt if the Lambda is involved - but further down the track it will cause no harmā¦
Frank
xj6 85 Sov Europe (UK/NZ)
Doesnāt hurt to check injectors, Graham. But be aware that each injector is not specific to each cylinder or synchronised with cylindersā valve opening times. They all spray into the manifold simultaneously and there is an element of cross feedingā¦less on the end cylinders, of courseā¦
Frank
xj6 85 Sov Europe (UK/NZ)
Very comprehensive, Brianā¦
But the sweep resistance is not supposed to be smooth - the AFM is a voltage divider and the resistance will vary between max and min several times during the sweepā¦
Frank
xj6 85 Sov Europe (UK/NZ)
